Fixed Loading Ramp (or Dock Leveler)
A fixed loading ramp is a hydraulic lifting device installed at the loading and unloading platform of a warehouse. It is primarily used to bridge the height difference between the truck bed and the warehouse platform, allowing forklifts and other handling equipment to directly enter and exit the truck bed for loading and unloading operations. This equipment, through its fixed installation, provides a stable, high-frequency, and high-efficiency loading and unloading solution, and is one of the core loading and unloading devices in modern logistics warehousing systems.
We are a professional manufacturer of fixed loading ramps in China, specializing in providing efficient and safe loading and unloading solutions for the global warehousing and logistics industry. Our equipment utilizes a hydraulic adjustment system to quickly adapt to different vehicle heights, achieving seamless connection, significantly improving loading and unloading efficiency and reducing labor costs.
We support customization of various specifications, suitable for high-frequency loading and unloading operations, and offer factory-direct pricing and global export services.
Structure & Working Principle
The fixed dock leveler is installed in a dock pit and mainly consists of:
- Load-bearing platform

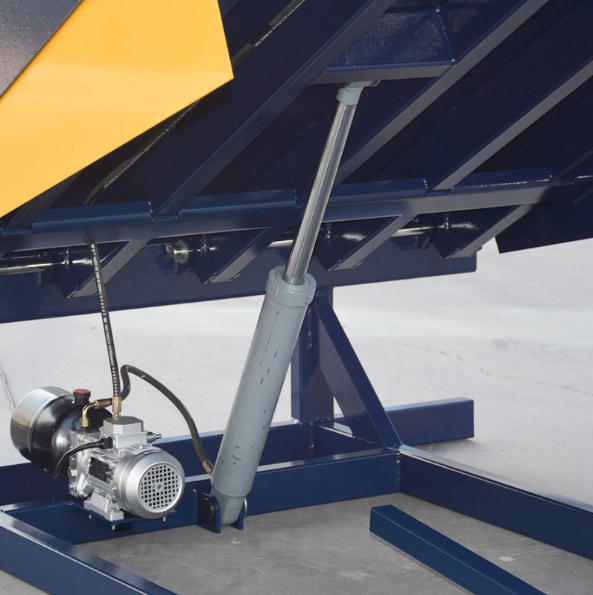

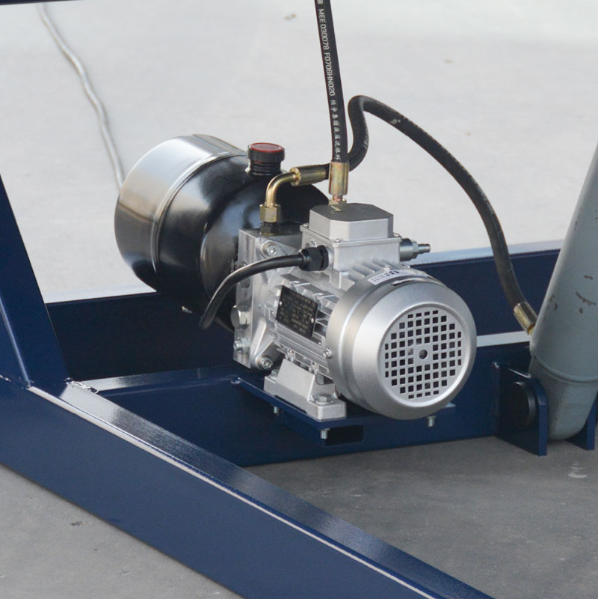

- Hydraulic lifting system

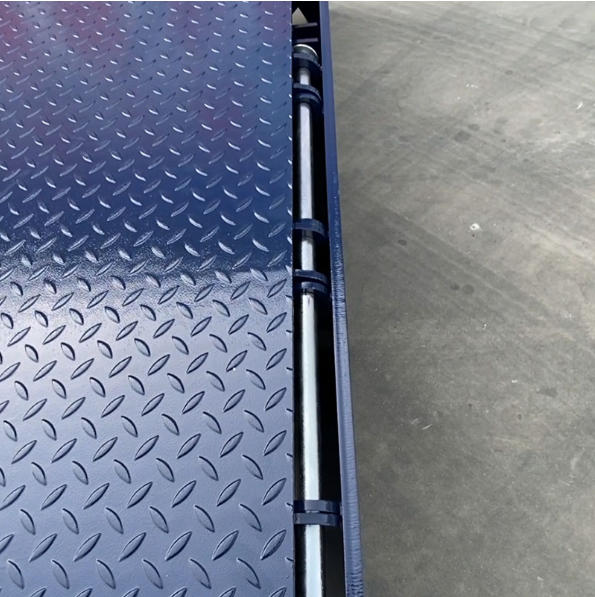

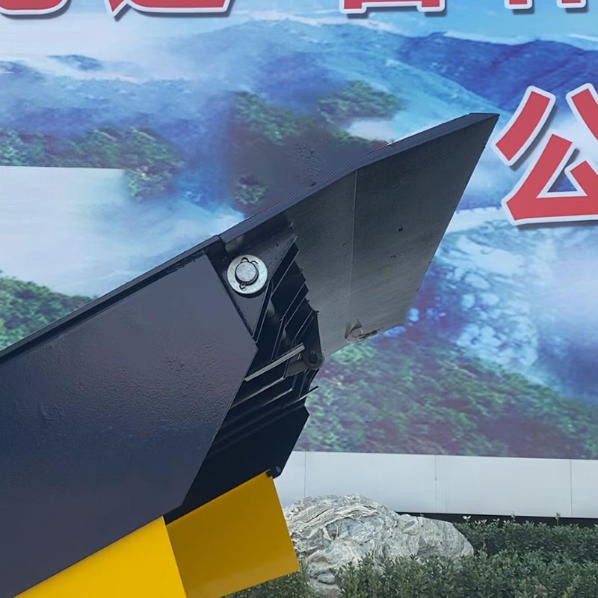

- Lip plate (hinged extension)

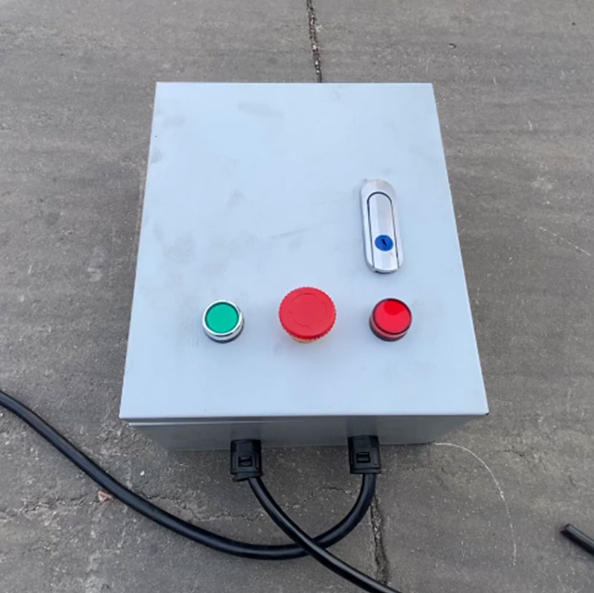

- Control system (electric or manual)
- Safety protection devices
The hydraulic system drives the platform to adjust height, while the front lip plate extends and rests securely on the truck bed, forming a smooth transition path for forklifts to operate efficiently.
Core Functions and Product Advantages
Heavy Duty 6–12 Ton Capacity Fast Hydraulic Lifting System Custom Size & Voltage Available
ble for long-term continuous use.
Why Choose Our Dock Leveler
Easy installation and maintenance
Improve loading efficiency by 50%
Reduce labor cost and time
Suitable for high-frequency operations
Stable and durable structure
Technical Specifications
| Item | Specification |
|---|---|
| Load Capacity | 6T / 8T / 10T (customizable) |
| Height Adjustment | ±300mm (customizable) |
| Platform Size | Customizable |
| Power Type | Electric hydraulic |
| Control System | Button control |
| Installation | Pit-mounted |
| Material | High-strength steel |
Detailed display
Problems Solved
- Eliminates height differences between dock and truck
- Improves loading efficiency
- Reduces manual labor and cargo damage
- Supports high-frequency loading operations
- Provides standardized loading processes
Fixed Dock Leveler Specifications
| Model | Platform Size (mm) | Lip Length (mm) | Up Range (mm) | Down Range (mm) | Power | Pit Size (mm) |
|---|---|---|---|---|---|---|
| DCQG6-0.6 | 2000 × 2500 | 400 | +300 | -200 | 0.75 kW | 2080 × 2540 × 600 |
| DCQG8-0.6 | 2000 × 2500 | 400 | +300 | -200 | 0.75 kW | 2080 × 2540 × 600 |
| DCQG10-0.6 | 2000 × 2500 | 400 | +300 | -200 | 0.75 kW | 2080 × 2540 × 600 |
As products are constantly being improved and updated, the specifications are for reference only. The actual product shall prevail.

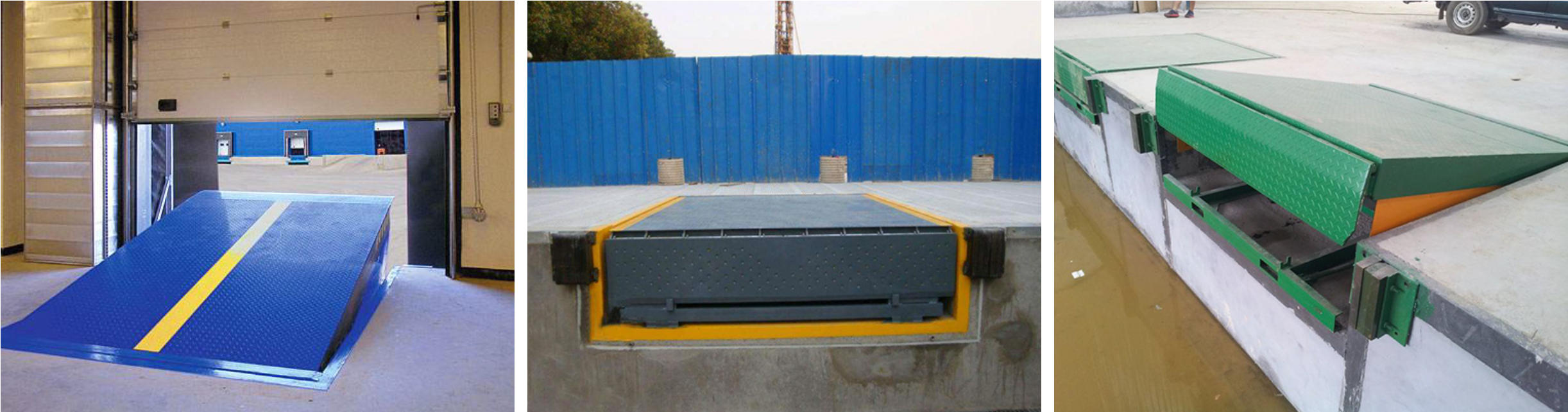

Applications
The fixed dock leveler is widely used in:
- Warehouses and logistics centers
- E-commerce distribution hubs
- Factory loading docks
- Cold chain and food industry
- Ports and freight stations
- Express sorting centers
Suitable for any high-frequency loading environment.
Safety Features

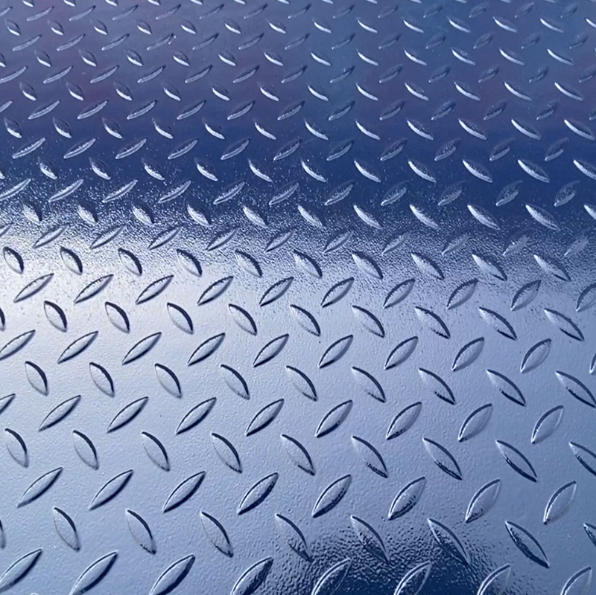

- Anti-slip steel platform

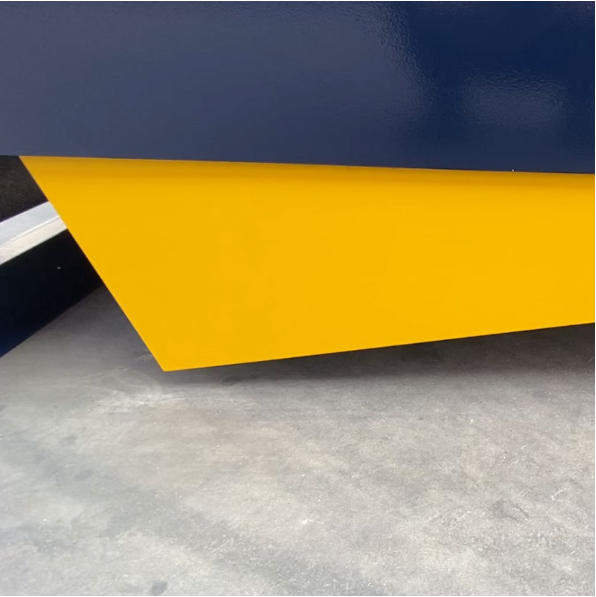

- Safety edge guards
- Hydraulic safety protection system
- Emergency stop function

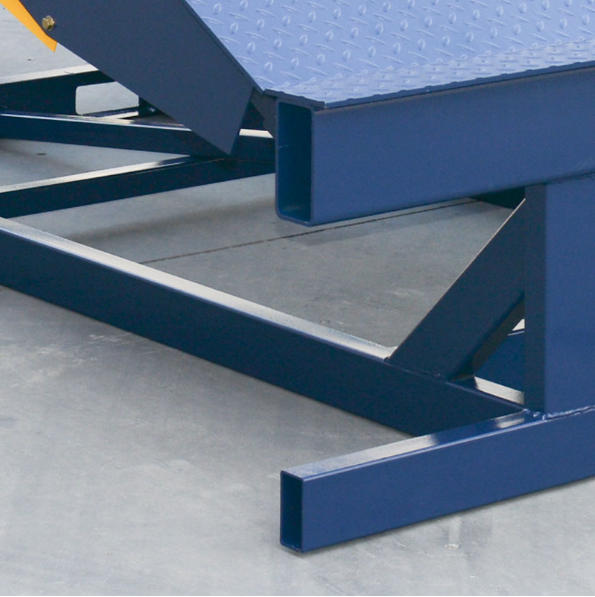

- Stable structural support
Ensures safe and reliable operation during loading.
Summary
Fixed loading ramps combine high load-bearing capacity with a stable structure, making them a core component of standardized warehouse loading and unloading systems. Compared to mobile equipment, they are more suitable for fixed loading and unloading points and high-frequency usage scenarios, sustainably improving overall logistics efficiency and reducing operating costs for enterprises.
